Lubeworks Oil Transfer Drum Pump Double Action 1:1 Fast High Flow Rate 8.5GPM / 32LPM for SAE130 Oils/Fluids

Lubeworks Oil Transfer Drum Pump Double Action 1:1 Fast High Flow Rate 8.5GPM / 32LPM for SAE130 Oils/Fluids

Sold out
$359.99
$359.99 - $359.99
$359.99
$329.99
$329.99 - $329.99
$329.99
SKU GCAL004
Availability:
Out of stock
Shipping Information

Free Shipping on all orders. No minimum purchase Necessary. For faster delivery times, please use Buy with Prime Checkout when available.

Returns & Warranty

All our products come standard with a 1 Year Manufacturers Warranty. As well as a 30 Day Return Period. Restocking fee may apply - Return Policy

Gas-Powered Product Return Policy

Due to hazmat concerns, gas-powered products cannot be returned once operated (i.e., filled with gas or oil). Items must be in unused condition to be eligible for return - Return Policy

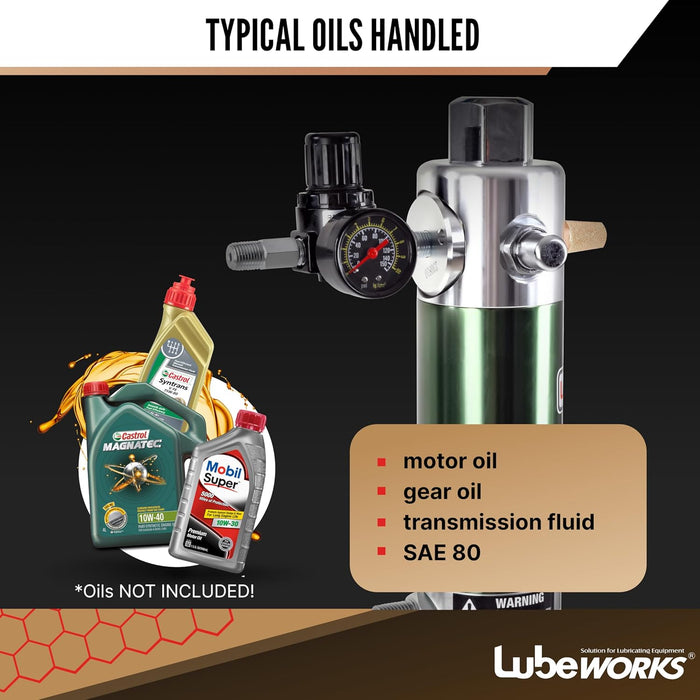

Lubeworks Transfer Pumps are Double Action & Self Priming designed, delivering the fast & precise flow rates. This Smart design uses fewer parts for less pump wear & tear, making it is easy to use & maintain. This pump is best suited for a Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid & suitable up to SAE80 grade oil.


With a High Flow rate of a Max 8.5GPM / 32LPM. A Max Pressure Ratio of 1:1. A Max Air Inlet Pressure of 5-8BAR / 70-115PSI. A Max Fluid Pressure of 8BAR / 115PSI. An Air Motor Effective Dia. of 63mm 2.5". An Air Consumption (per minute) @ 8BAR / 130L @ 115PSI / 4.7CFM. An Air Inlet Connection of 1/4" & Oil Outlet Connection of 3/4" Male. A Long Pump Life of 960k Liters / 253k+ Gallons.

Product Features

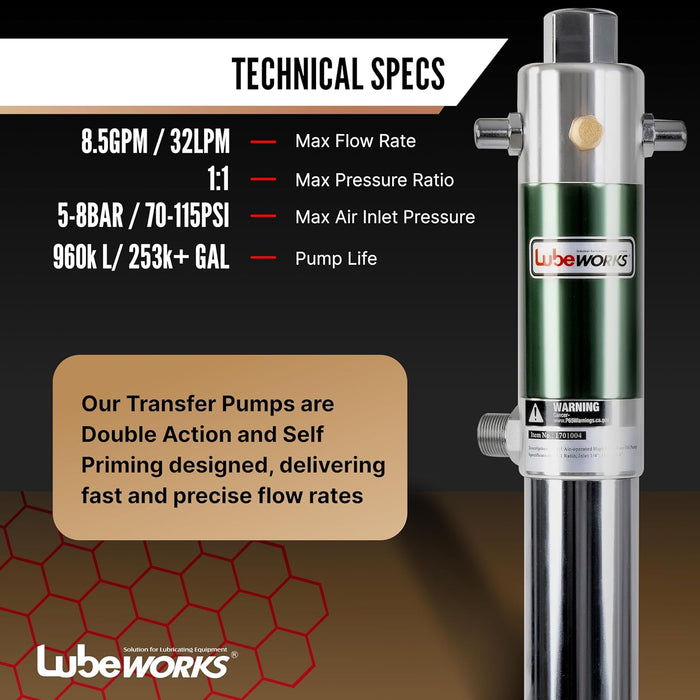

  • SPECIFICATIONS - This Air Operated (Pneumatic) Double Action Oil Transfer Pump has a High Flow rate of a Max 8.5GPM / 32LPM; A Max Pressure Ratio of 1:1; A Max Air Inlet Pressure of 5-8BAR / 70-115PSI; A Max Fluid Pressure of 8BAR / 115PSI. An Air Motor Effective Diameter of 63mm 2.5" inch; An Air Consumption (per minute) @ 8BAR / 130L @ 115PSI / 4.7CFM; An Air Inlet Connection of 1/4" and Oil Outlet Connection of 3/4" Male; A Long Pump Life of 960k Liters / 253k+ Gallons

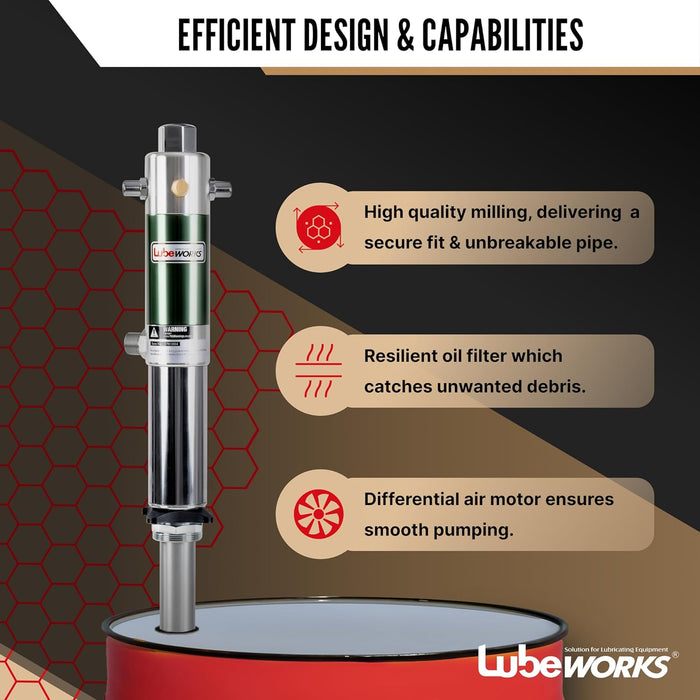

  • EFFICIENT DESIGN and CAPABILITIES - Our Transfer Pumps are Double Action and Self Priming designed, delivering fast and precise flow rates; This Smart design uses fewer parts for less pump wear/tear, making it is easy to use/maintain This pump is best suited for Multiple Fluid types of medium to high viscosity at a short to medium distance, typical fluids handled include: motor oil, synthetic oil hydraulic, gear oil, automatic transmission fluid and suitable up to SAE80 grade oil

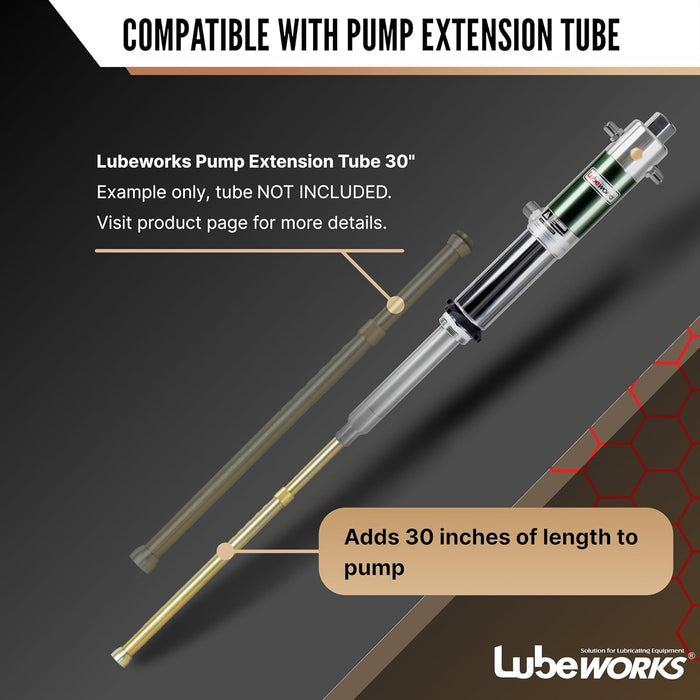

  • PROPER USE & SAFETY - All our pumps come with a 2" inch Adjustable Bung adapter, for easy installation for barrel mounted applications; This pump can be barrel, cart or wall-mounted; A Wall Mount Kit or Extension Tube Kit are Sold SEPARATELY; Follow manual for setup and always use the proper additional equipment as listed in the manual when installing pump and always wear protective glasses/goggles or gear when operating equipment
We're Sorry this product does not have a manual download. Please contact us at help@greatcircleus.com
